OPW 21 Series Fuelling Nozzles & Hanging Hardware
Stylish | Precise | Fuelling Innovation Your Customers Will Love
Enhance your customer’s fuelling experience with the new 21 series of fuelling nozzles and accompanying swivels and breakaways by OPW. Sleek, attractive and lightweight European styling designed for ultimate aesthetic appeal and comfort. Engineered for precise fuelling control, the 21 family of nozzles features technology that lets your customer experience a true quality handshake with your fuelling site.
OPW 21 Series European Nozzles
Petrol | Vapour Recovery | Diesel | AdBlue
Now you can get European style and world-renowned OPW quality with the new OPW 21 series of fuelling nozzles
All the form your customers are familiar with in
a European-class nozzle design, ATEX and TUV certified and backed by the engineering excellence that makes OPW the quality leader around the world. Give your customers a fuelling experience that keeps inviting them back.

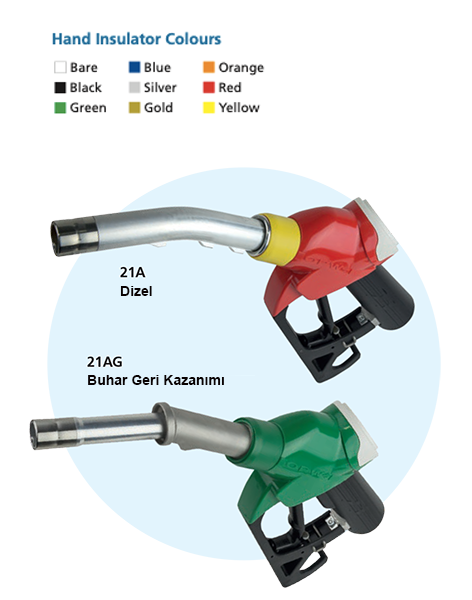

OPW 21A – conventional non-vapour recovery nozzle with a 25mm diesel spout or 21mm (21AP) unleaded petrol spout
OPW 21B – conventional non-vapour recovery nozzle with no pressure/no flow device for 25mm diesel or 21mm (21BP) unleaded petrol spouts
OPW 21AG – unleaded vapour recovery nozzle without vapour valve or (21AGV) with vapour valve
OPW 21BG – unleaded vapour recovery nozzle with no pressure/no flow device without vapour valve or (21BGV) with vapour valve
OPW 21H – high-flow truck stop diesel nozzle with 140 LPM and 32mm spout
OPW 21ADB – AdBlue nozzle with 19mm spout
Key Features & Benefits
• A superior fuelling experience, engineered to inspire consumer preference
• Exceeds ATEX safety standards protecting consumers and the environment
• Built to last: the long-term solution / lower cost of ownership
• Available in multiple guard configurations to fit your dispensing equipment
• Fuel identification (new EU directive) neatly positioned on side of message centre with no unsightly add-on tabs
• Utilises Accu-StopTM flow control for precise metering at the pump
• Designed to minimise post-fuelling drips
• Stainless Steel spout tip standard on all models to increase durability and nozzle life
• Low temperature option available on all models
• Nozzles available with swivel or swivel / breakaways to enhance consumer ease of use
Design Working Pressure
• 3.5 bar maximum pressure
Temperature Range
• -30oC to 55oC - standard
• -54oC to 55oC - extreme temperature
(not available on 21ADB)
Materials (dependent on model)
Aluminium, plated/coated aluminium,
nickel, stainless steel, brass, PU, NBR, FKM, FVMQ, PTFE, PEEK, POM, PA, PET, PP, PVC, TPU.
Fuel Compatibility
• Gasoline and gasoline-ethanol blends up to 85% Ethanol
• Diesel and BioDiesel Blends up to 20% Biodiesel
LPM Flow Chart
Listings & Certifications
EN13012 Sira 19ATEX9106U
TUV (for 21AG/21AGV/21BG/21BGV)
Ergonomic handgrip, easy-to-activate and hold-open latch
Large (47mm), interchangeable message center for branding or promotions. Side tab available for fuel identification.
11A 3/4” AUTOMATIC FUELING NOZZLE
OP.11.AL
› Used in diesel, gasoline and up to 10% ethanol blends.
› BSP, NPT thread type options
› FlowLock allows nozzle to shut-off when falling out of
a vehicle, and is tipped up, limiting spillage and unsafe
conditions.
› Standard green, red, black, yellow and blue
color options - please contact us for different color
requirements
› Atex Approved
11B 3/4” AUTOMATIC FUELING NOZZLE
OP.11.BL
› Used in diesel, gasoline and up to 10% ethanol blends.
› Prevents gasoline spills in prepay or self service sites
via No Pressure - No Flow Device. The nozzle cannot be
opened until the pumping system is pressurized, and
closes automatically when the pressure is removed
› BSP, NPT thread type options
› FlowLock allows nozzle to shut-off when falling out of
a vehicle, and is tipped up, limiting spillage and unsafe
conditions.
› Standard green, red, black, yellow and blue
color options - please contact us for different color
requirements
› Atex Approved
7H 1” AUTOMATIC FUELING NOZZLE
OP.07.HL.034L
› Used in diesel, gasoline and up to 10% ethanol blends.
› Used in applications where high-flow performance is
required.
› BSP, NPT thread type options
› FlowLock allows nozzle to shut-off when falling out of
a vehicle, and is tipped up, limiting spillage and unsafe
conditions.
› Standard green, red, black, yellow and blue
color options - please contact us for different color
requirements
› Atex Approved
7HB 1” AUTOMATIC FUELING NOZZLE
OP.07.HB.5400
› Used in diesel, gasoline and up to 10% ethanol blends.
› Prevents gasoline spills in prepay or self service sites
via No Pressure - No Flow Device. The nozzle cannot be
opened until the pumping system is pressurized, and
closes automatically when the pressure is removed
› Used in applications where high-flow performance is
required.
› BSP, NPT thread type options
› FlowLock allows nozzle to shut-off when falling out of
a vehicle, and is tipped up, limiting spillage and unsafe
conditions.
› Standard green, red, black, yellow and blue
color options - please contact us for different color
requirements
› Atex Approved
1290 1.5” AUTOMATIC FUELING NOZZLE
OP.1290.L.075L
› Aluminium body
› Two position hold-open device
› One hand control of hold-open mechanism for smooth
fueling
› Right angle design provides easier usage.
