FRANKLIN Products
FRANKLIN
75x63mm Pipe System
| DESCRIPTION |
PRODUCT CODE | UNIT (Sticks) | WEIGHT (kg/m) | WEIGHT (Ibs/ft) | DIAMETER Ø (mm) |
|---|---|---|---|---|---|

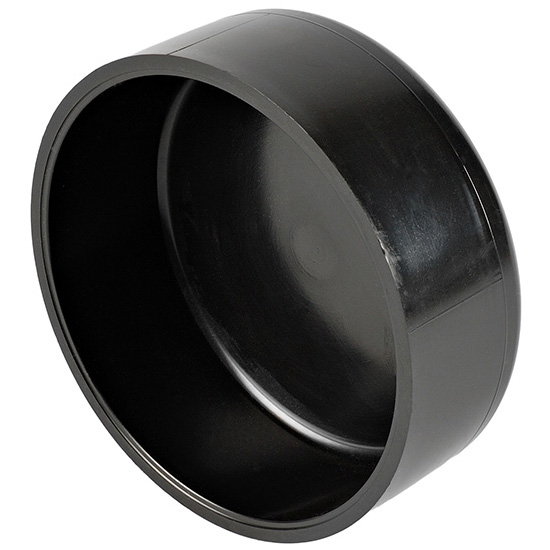

| End Cap Secondary | 10-075-SC | 20 | 0.11 | 0.24 | 75 |
| End Cap Secondary | 10-110-SC | 20 | 0.4 | 0.8 | 110 |
| DESCRIPTION |
PRODUCT CODE | UNIT (Sticks) | WEIGHT (kg/m) | WEIGHT (Ibs/ft) | DIAMETER Ø (mm) |
|---|---|---|---|---|---|

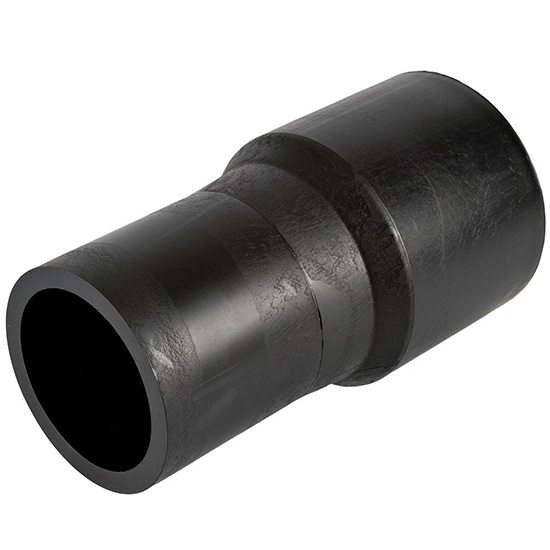

| Fusion Reducer Secondary | 49-075-063-1 | 25 | 0.2 | 0.44 | 75/63 |
| Fusion Reducer Secondary with Test Port | 49-075-063-TP-1 | 25 | 0.2 | 0.49 | 75/63 |
| DESCRIPTION |
PRODUCT CODE | UNIT (Sticks) | WEIGHT (kg/m) | WEIGHT (Ibs/ft) | DIAMETER Ø (mm) |
|---|---|---|---|---|---|

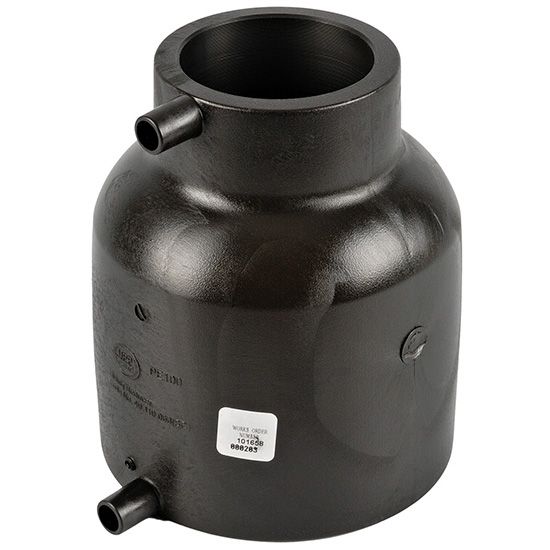

| Sliding Reducer Secondary | 49-110-075(SC) | 15 | 0.48 | 1.06 | 110/75 |
| DESCRIPTION |
PRODUCT CODE | UNIT (Sticks) | WEIGHT (kg/m) | WEIGHT (Ibs/ft) | DIAMETER Ø (mm) |
|---|---|---|---|---|---|

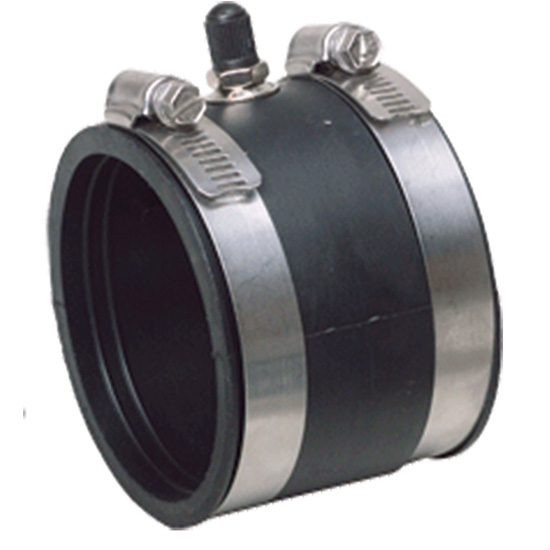

| Test Boot Secondary with Test Port | STB-200 | 1 | 0.2 | 0.5 | 75/63 |
| DESCRIPTION |
PRODUCT CODE | UNIT (Sticks) | WEIGHT (kg/m) | WEIGHT (Ibs/ft) | DIAMETER Ø (mm) |
|---|---|---|---|---|---|
| Fusion Seal with Integrated Coupler | 303-075-EIF | 20 | 0.24 | 0.53 | 75 |
| DESCRIPTION |
PRODUCT CODE | UNIT (Sticks) | WEIGHT (kg/m) | WEIGHT (Ibs/ft) |
|---|---|---|---|---|
| Weld Pin Protection Cap | ESI-CAP-012 | 100 | 0.004 | 0.01 |
| DESCRIPTION |
PRODUCT CODE | UNIT (Sticks) | WEIGHT (kg/m) | WEIGHT (Ibs/ft) |
|---|---|---|---|---|
| Leak Detection Tube Kit - not for use with STB-200 product offering | LDT 60-1 | 1 | 0.05 | 0.11 |
| DESCRIPTION |
PRODUCT CODE | UNIT (Sticks) | WEIGHT (kg/m) | WEIGHT (Ibs/ft) |
|---|---|---|---|---|
| Leak Detection Tube Kit - for use with STB-200 product offering | BPT-200 | 1 | 0.05 | 0.11 |
